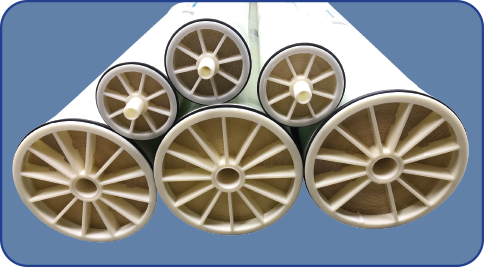

Commercial 2.5” & 4” Reverse Osmosis Membranes
Get Your Free Quote Today!
Aqua Flo commercial reverse osmosis elements consistently offer high-quality water and reliable system performance by operating at lower pressures and low energy costs.
Features:
Superior quality and cost savings
Long-lasting performance
Low energy costs
High flux rates
High rejection rates
Dry shipping for convenient handling and long shelf life
Individually inspected and vacuum tested
| Test Conditions | XLP | ULP |
|---|---|---|
| Testing solution concentration (NACI) | 500 ppm | 1500ppm |
| Test solution pH value | 7.5 | 7.5 |
| Temperature of testing solution | 25 C | 25C |
| Recovery rate of single element | 15% | 15% |
| Testing pressure | 100psi | 150 psi |
| Operating Limits And Conditions | |
|---|---|
| Free Chlorine Tolerance | <0.1ppm |
| Maximum Feed Water SDL | 5.5 |
| pH range of feed water continous operation | 3-10 |
| pH range of feed water during chemical cleaning | 2-12 |
| Maximum feed water operating temperature | 45 C |
| Maximum operating pressure | 300 psi |
| Maximum pressure drop of single element | 15 psi |
| Maximum permeate flux | 16 gpm |
| Model | A | B | C | D | ||||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | |
| TW-2540XLP | 40.00 | 1016.0 | 2.40 | 61.0 | 0.75 | 19.1 | 1.19 | 30.2 |
| TW-4040XLP | 40.00 | 1016.0 | 3.90 | 99.1 | 0.75 | 19.1 | 1.05 | 26.7 |
| BW-2521ULP | 21.00 | 533.4 | 2.40 | 61.0 | 0.75 | 19.1 | 1.19 | 30.2 |
| BW-2540ULP | 40.00 | 1016.0 | 2.40 | 61.0 | 0.75 | 19.1 | 1.19 | 30.2 |
| BW-4040ULP | 40.00 | 1016.0 | 3.90 | 99.1 | 0.75 | 19.1 | 1.05 | 26.7 |
