89 Series Softener

HT 89 Softener.jpg
  • System Certification: IAPMO R & T Certified against NSF/ANSI 44 and CSA B483.1

  • Fibreglass Pressure Tank and Control Valve Certifications: NSF/ANSI 44 certified for materials and structural integrity

  • Resin Certification: IAPMO R & T against NSF/ANSI 61 for material safety only


  • Traditional twin tank or cabinet style

  • Round or square brine tanks in black, blue or vanilla

  • Pressure tanks in black, blue or natural

  • Tank jackets with black caps in chrome, grey, blue or vanilla

Hydrotech’s premier high flow, high-efficiency softener sets the new standard for high performance while offering more features designed to make installations faster & easier than ever! The 89 Series offers a 1” port that is perfect for large homes and small businesses.


  • True 1” porting provides high flow rates for larger homes

  • Upflow Regeneration with Optimal Precision Brining provides high-efficiency performance and lowest possible salt usage

  • Adjustable backwash frequency saves up to 2,000 gallons of water

    per year

  • Large 4 line Touch Pad LCD display. No confusing symbols/codes

  • Automatic System Flush refreshes system during periods of non-use preventing bacteria growth

  • Soft Water Recharge performs quick regeneration ensuring you never run out of soft water

  • Soft Water Brine Tank Refill conserves capacity and keeps brine tank clean

  • Time saving quick connect features on bypass, drain line and power cord

  • Meter immediate; meter delayed; meter override; vacation and calendar clock modes

  • Self charging capacitor keeps date / time of day for 48 hours while programming remains in permanent memory

  • Space saving bypass with integrated turbine meter

  • Comes with 1” straight NPT

  • Seven Year Control Valve Warranty, Lifetime Warranty on Tanks

UpFlow Regeneration with Precision Brining

Traditional "downflow" softeners deplete the unused portion of the resin bed with every regeneration. It is like draining the gas tank in your car before you fill it up! "Reverse Flow Regen" drives the hardness minerals up through the already depleted resin and out to the drain - saving both salt and the unused portion of the resin for future use.

Precision brining saves additional salt by pre-making only 70% of the brine. Just before regeneration, the computer calculates the precise amount of brine top-up needed to regenerate only the depleted resin saving up to 30% more salt.

Reverse Flow Regeneration Diagram

Reverse Flow Regeneration Diagram

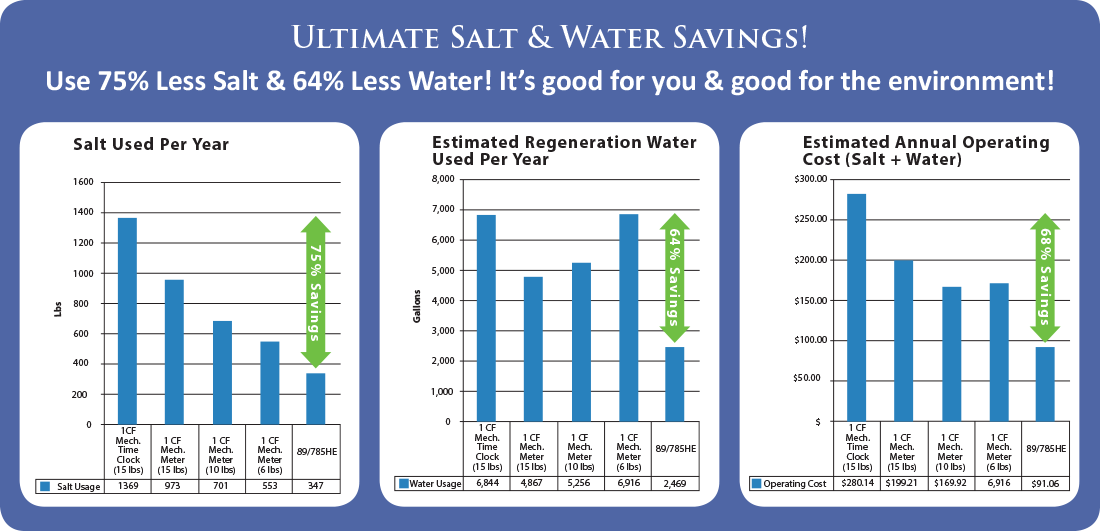

Salt Savings Chart.png


89 Softener Spec Sheet
# 80153021

89DFUF Manual

Softener Warranty
# 80150345

89 Valve Quick Set-up Manual # 55244

Part # - Model #

15100000 / HT89UF-75
15100018 / HT89UF-100
15100036 / HT89UF-150
15100054 / HT89UF-200

15100060 / HT89UF-250
15100061 / HT89UF-300
15100062 / HT89UF-75C
15100100 / HT89UF-100C

15100118 / HT89UF-75
15100136 / HT89DF-100
15100154 / HT89DF-150
15100157 / HT89DF-200

15100160 / HT89DF-250
15100161 / HT89DF-300
15100162 / HT89DF-75C
15100000 / HT89UDF-100C
