85TA 1” Series Softener

85TA Softener.png
  • Optional: Stainless steel piping manifold

  • Optional: Aux output closed during full regeneration cycle

Our 85 TA 1” (Twin Alternating) Series softeners provide up to 16.6 gpm of continuous soft water 24 hours a day. They are engineered and thoroughly tested to provide years of reliable, trouble free performance with minimal maintenance.

FEATURES:

  • Up-flow: Provides high efficiency and ultra low hardness leakage

  • Master Controller: Fully programmable electronic controller with adjustable cycles

  • Alternating Flow: One tank is always off-line for regeneration or ready in standby

  • Advanced Diagnostic Information: Easily trouble shoot and access system information displayed in real time

  • Back Wash Override: Reduces regeneration water usage by skipping preset number of back wash cycle

  • Soft water Refill: Adds treated water to the brine tank to keep brine clean and reduces maintenance

  • System Certification: IAPMO R & T Certified against NSF/ANSI 44 and CSA B483.1

  • Fibreglass Pressure Tank and Control Valve Certifications: NSF/ANSI 44 certified for materials and structural integrity

  • Resin Certification: IAPMO R & T against NSF/ANSI 61 for material safety only


Reverse Flow Regeneration with
Precision Brining

Traditional "downflow" softeners deplete the unused portion of the resin bed with every regeneration. It is like draining the gas tank in your car before you fill it up! "Reverse Flow Regeneration" drives the hardness minerals up through the already depleted resin and out to the drain - saving both salt and the unused portion of the resin for future use.

Precision brining saves additional salt by pre-making only 70% of the brine. Just before regeneration, the computer calculates the precise amount of brine top-up needed to regenerate only the depleted resin saving up to 30% more salt.


Reverse Flow Regeneration

Reverse Flow Regeneration



Resources

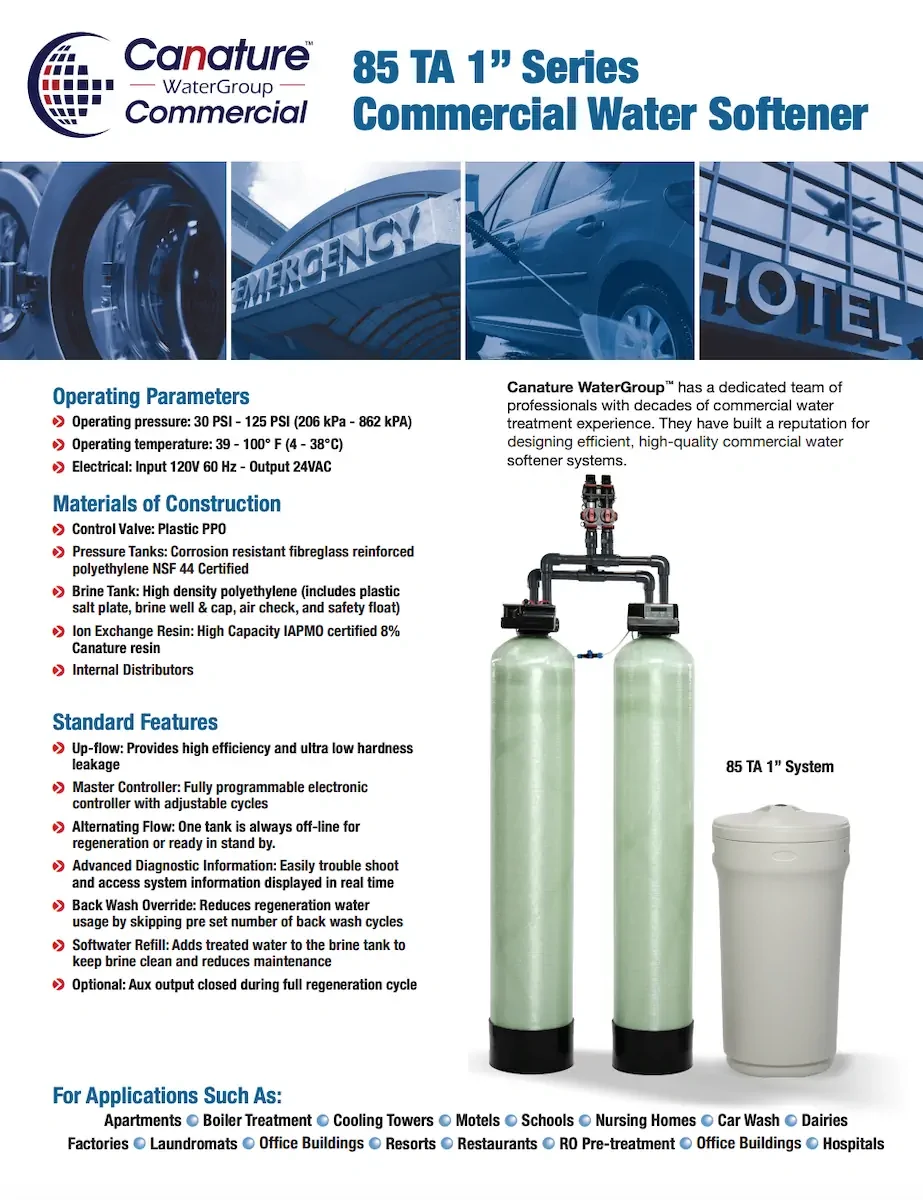

85TA Softener Spec Sheet
# 80153034

85TA Manual # 80150378

Softener Warranty
# 80150345


Part #s / Model #s

97002305 / 85TA-23
97002306 / 85TA-30
97002307 / 85TA-45

97002308 / 85TA-60
97002309 / 85TA-90
